Two-factor Authentication

Table of contents

Overview

Two-factor authentication adds an extra layer of security and prevents access to your users' session even if someone knows their password.

A combination of two different factors is used to achieve a greater level of security:

1) something they know, a password.
2) something they have, a device - such as a smartphone - with an authentication app installed..

You can use one of the following authenticator apps to proceed. These apps are available across a wide range of platforms:
- Authy
- Google Authenticator
- Microsoft Authenticator

Each time a user sign in to its remote session it will need its password and a verification code available from its mobile phone. Once configured, the authenticator app will display a verification code to allow him or her to log in any time. It works even if its device is offline.

OR you can decide to receive verification codes by SMS. In this case, you will have to create a free account on Twilio.

The 2FA codes generated are TOTP (time-based one time password), and therefore are for single use.

Therefore, it is not possible to reuse a 2FA code that has already been used. This prevents the theft and then the use of a 2FA code by observing the user while he enters his code.

Requirements

Two-factor authentication requires BYODAPP Remote Access Mobile Web or Enterprise Editions.

Two-factor authentication is supported by:
- BYODAPP Remote Access Web portal, for both HTML5 and Remoteapp connections
- BYODAPP Connection Client, for clients generated since version 15.30.3.15, with 2FA support explicitely enabled. See Portable Client Generator Support for Two-factor Authentication
- 2FA is related to Windows Users and not Web credentials

This authentication mode does not support login through standard Microsoft Remote Desktop client (mstsc.exe).

In order to provide an even safer solution, RDP connections are denied for 2FA enabled users.

As a prerequisite, BYODAPP server and Devices must be on time. See the Time Synchronization and Settings sections for more configuration information.

Activating Two-factor Authentication Add-On License

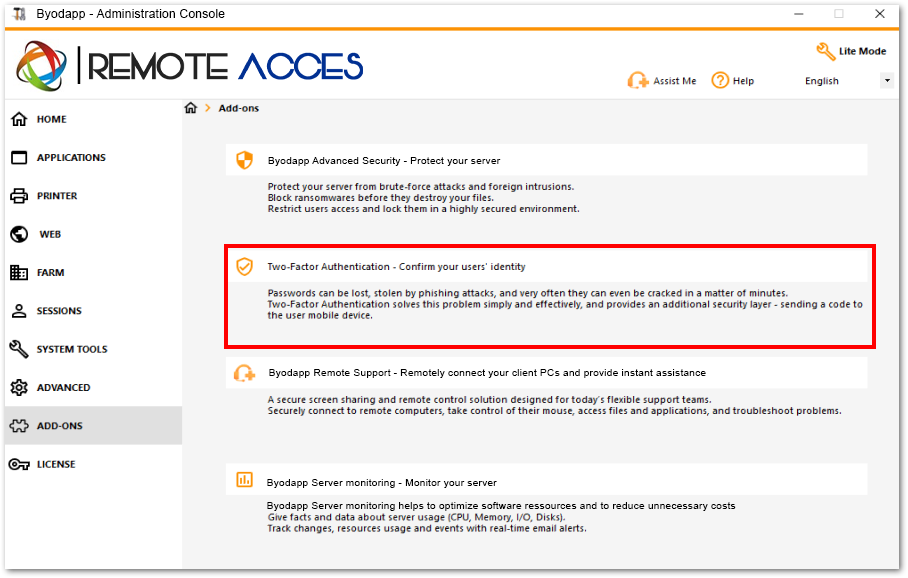

The Two-Factor Authentication feature can be found on the Add-On tab of the AdminTool:

Activating-Two-Factor-Authentication 1

Enable Two-factor Authentication

Perform the following steps to enable two-factor authentication for your BYODAPP server or deployment. If your BYODAPP deployment is configured to use multiple servers, perform this task on the BYODAPP server exposed as the single point of entry for users or having the reverse proxy role.

1) Open the two-factor authentication administration application. The two-factor authentication status and the license status are displayed:

Two-factor Authentication

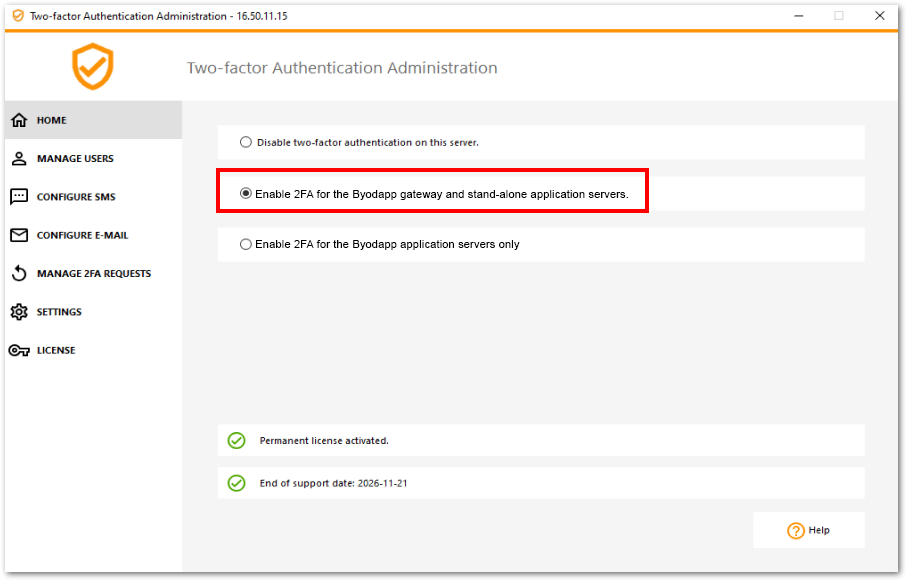

By default, 2FA is enabled for the BYODAPP gateway and stand-alone application servers.

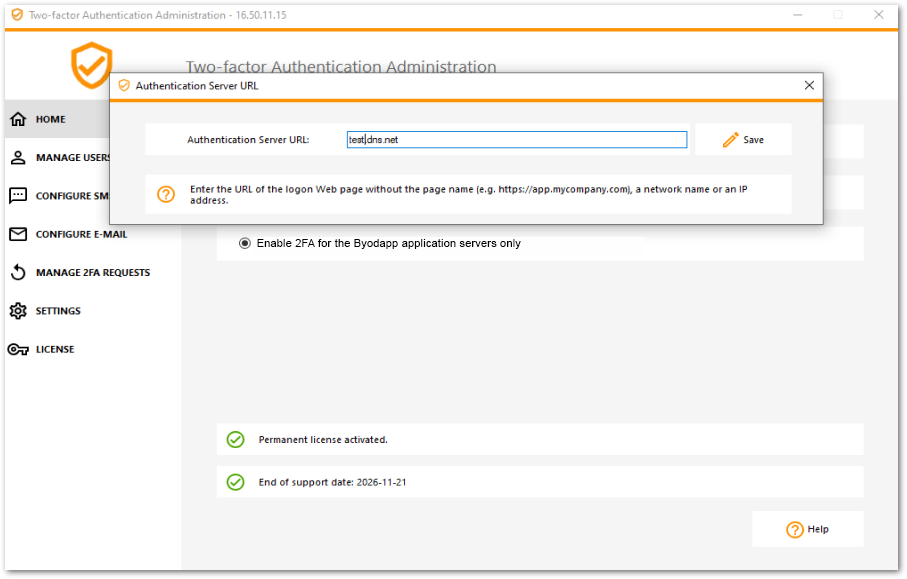

You can enable it for BYODAPP application servers only, by entering the authentication server URL:

Two-factor Authentication Application Server

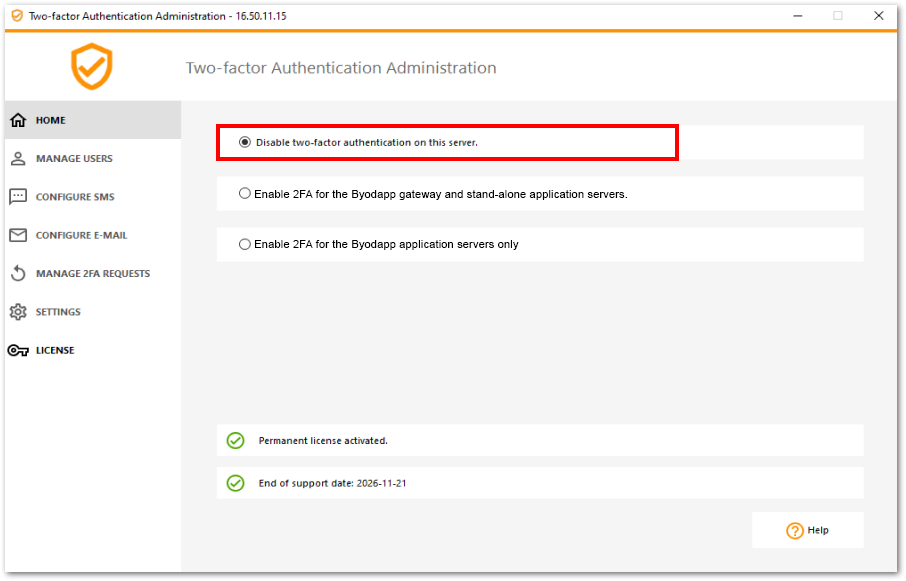

Or disable it:

Two-factor Authentication is disabled

Add Users and Groups

Once two-factor authentication is enabled, you can configure users for two-factor authentication.

1) From the two-factor authentication administration application, click on the Manage Users tab.

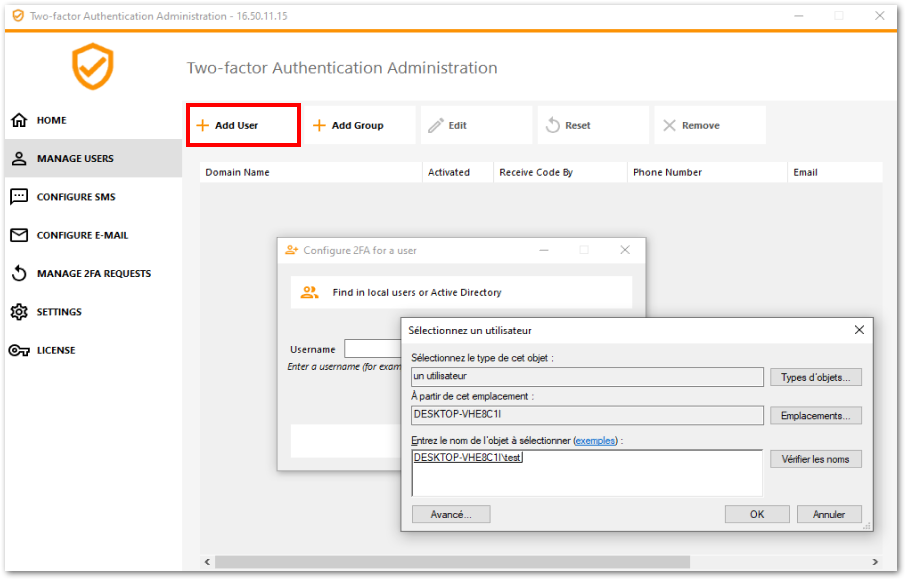

2) Then, click on Add to select users and/or groups of users. The Select Users or Groups box opens.

Add Users and Groups

3) Add as many users and groups as required and then click OK. The users and groups are added to the list and enabled for two-factor authentication.

Here are commands to add users/groups
3 types of possible arguments:

just the domainName
TwoFactor.Admin.exe /addusers domainName1 - adds the user with the default values (reception method = app, email and telephone fields not entered)

the domainName and the reception method
TwoFactor.Admin.exe /addusers domainName1;SMS - adds the user with the desired receive method, but does not attempt to activate it

the domainName, the reception method, the Phone field (even if empty), the Email field (even if empty)
TwoFactor.Admin.exe /addusers domainName1;SMS;+33606060606;username1@truc.net domainName2;Email;;username2@truc.net domainName3;SMS;+33606060607; domainName4

  • Same behavior as in the HMI, when we add a user, then edit it with correct information: we try to activate the user

As shown in the last example, several users can be indicated (separated by a space). The different fields of a user are separated by a semicolon

For single groups:
TwoFactor.Admin.exe /addgroups group1 group2 group3

Edit Users

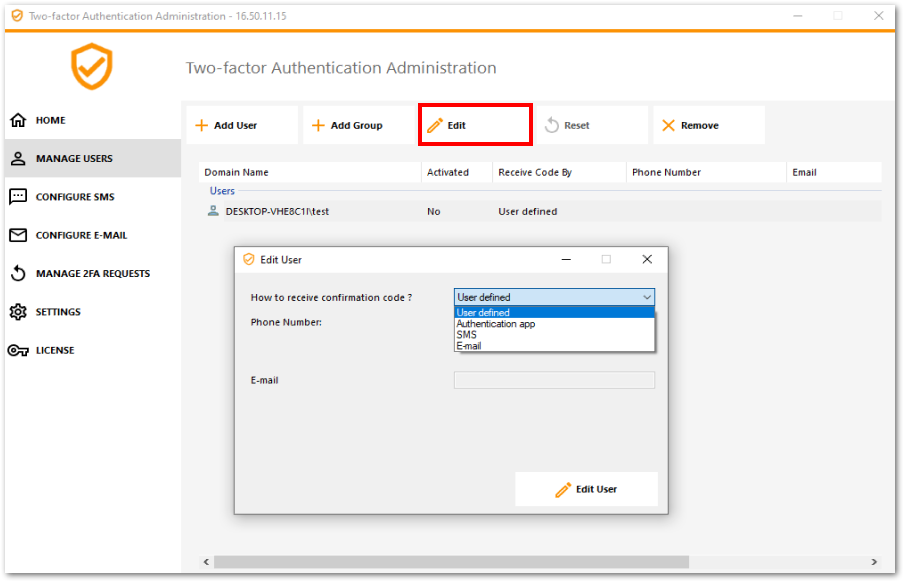

On the same tile, you can edit the way users receive verification codes by selecting a user and clicking on the "Edit" button:

Edit Users

The user receives verification codes on the authentication app by default. You can choose that he/she receives it by SMS or EMAIL by selecting the option.

Selected SMS and added the user's phone number in the field or selected EMAIL and added the user's email.

Remove Users and Groups

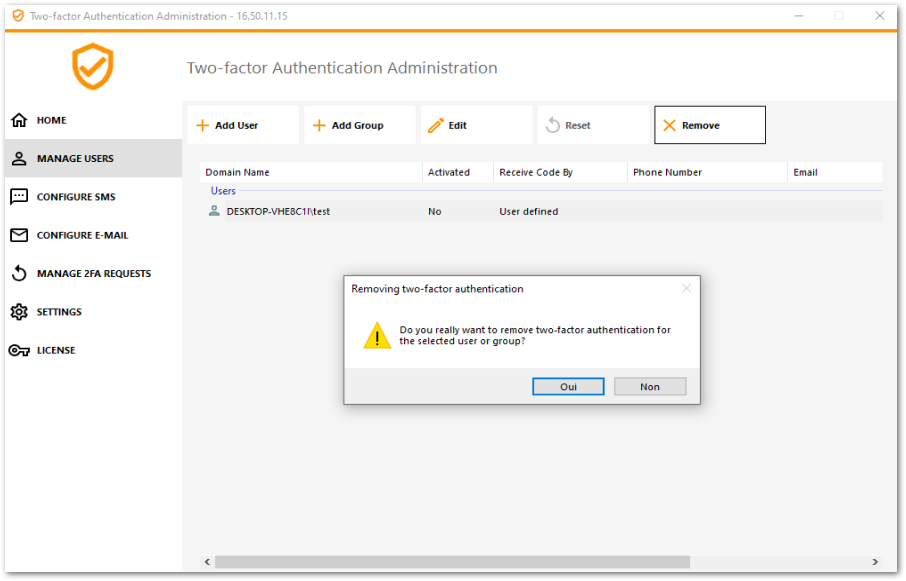

In order to remove users or groups, select the user or the group and then click on Remove. A confirmation message is displayed.

Remove Users and Groups

Click Yes. The user or the group is removed from its list and won't connect using two-factor authentication anymore.

Reset Configuration for Users

In the event of the loss of the authenticating device for a user, or if the user needs to display the secret QR code again, you must reset the user authentication settings.

1) From the two-factor authentication administration application, click on the Manage Users tab.

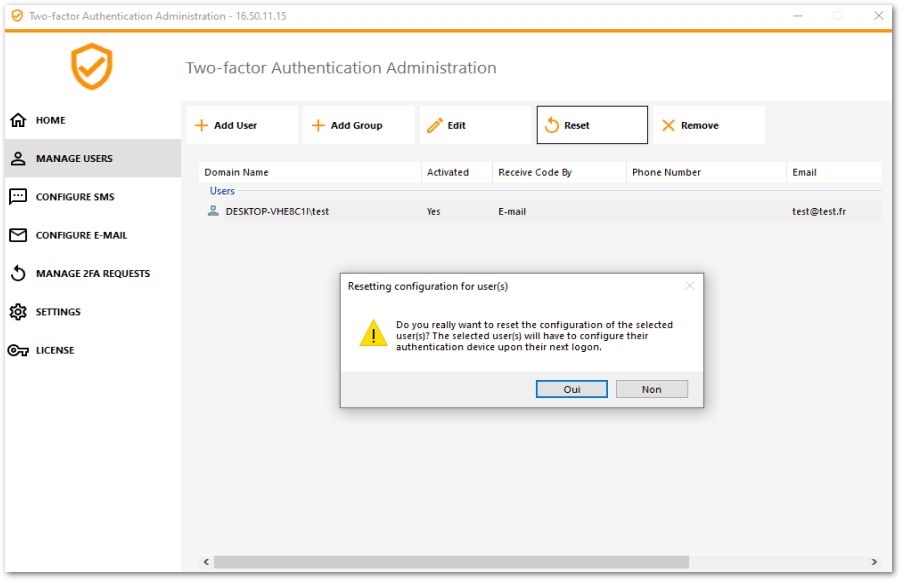

2) Select one or multiple activated users and then click on Reset. A confirmation message is displayed:

Reset Users

3) Click Yes. The selected users will be presented a new QR code at the next login and will have to scan it in their device's authentication app.
You can also modifiy the user's phone number, so that he can receive a verification code on his new device.

Enroll User for Two-factor Authentication

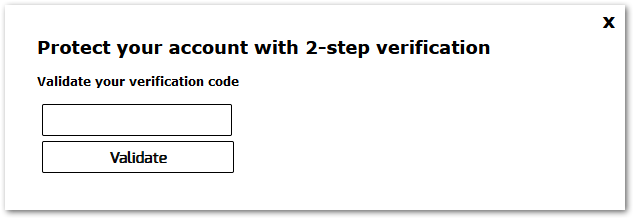

Once a user has been enabled for using two-factor authentication, an activation message will be displayed at his next successful logon from the BYODAPP Web portal.

Activate Two-factor Authentication

In order to complete the required steps, you have two choices: either generate codes via an authenticator app, either make the user receive codes by SMS.

Receive codes with an Authenticator Application

The user must install an authenticator app on a portable device, such as his smartphone.

You can use one of the following authenticator apps to proceed. These apps are available across a wide range of platforms:
- Authy
- Google Authenticator
- Microsoft Authenticator

Please use each app documentation for more details on how to proceed to add your BYODAPP account.

Configure SMS

In order for the user to receive verification codes by SMS, you must first enable it. Click on the Configure SMS tab:

BYODAPP leverages Twilio in order to send verification codes by SMS. Twilio is a third-party cloud platform, not affiliated with BYODAPP.

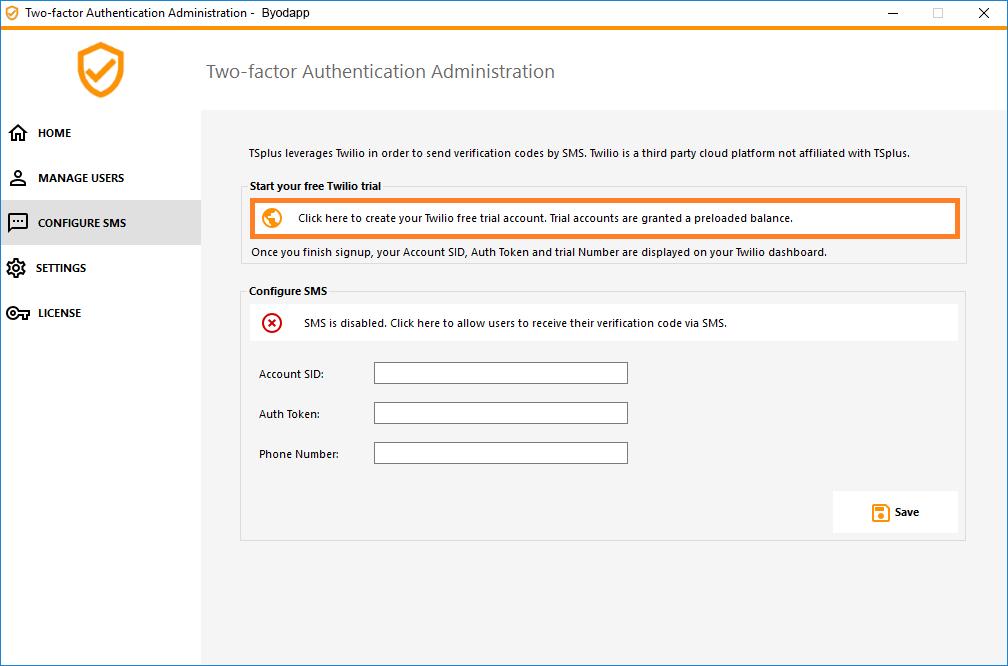

1) Just create a free account on Twilio by clicking on the button below "Start your free trial with Twilio":

Configure SMS

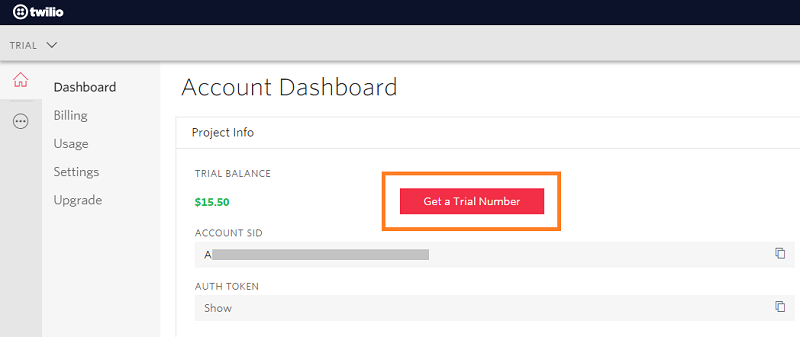

2) On your Twilio account dashboard, you will need to activate your Trial Number:

Configure SMS

3) The next step is only necessary for Trial versions. It allows Twilio to verify the actual phone number on which SMS will be sent.

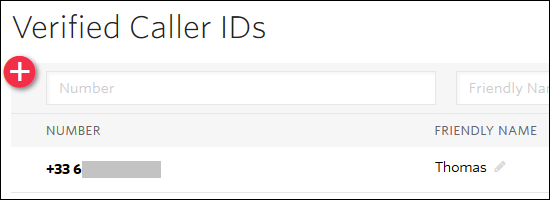

Enter this number under the "Phone Numbers" menu - "Verified Caller IDs" tab :

Configure SMS

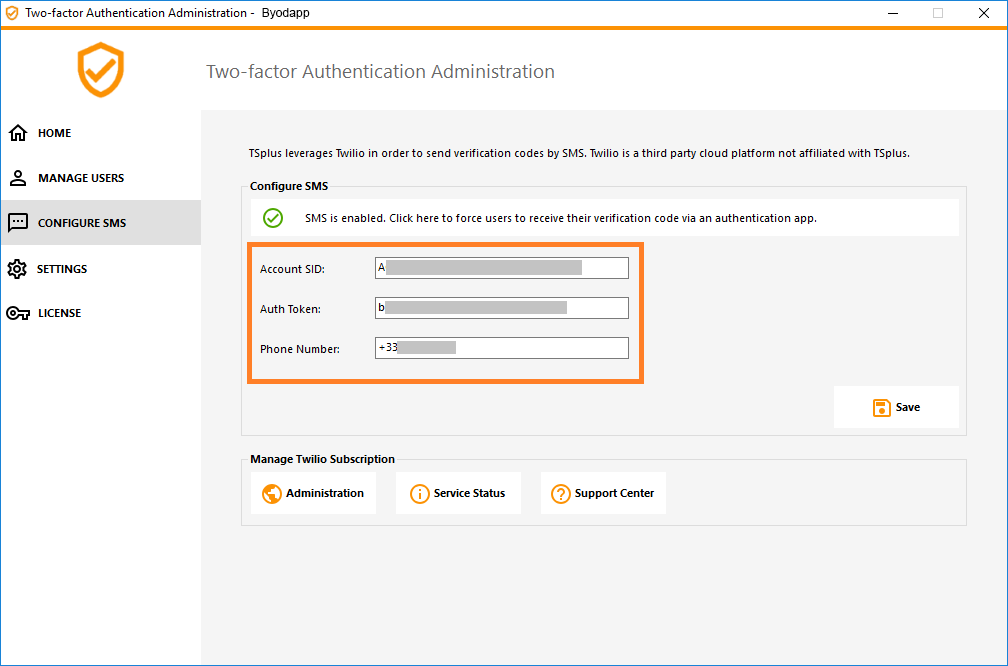

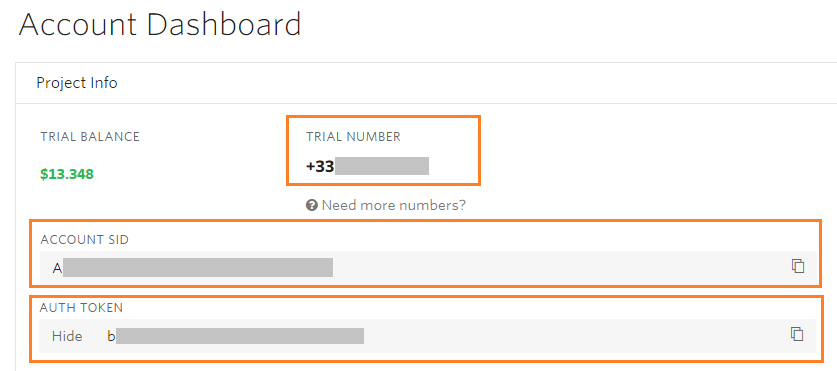

4) You will then be able to enter your account SID, Authentication Token and Trial Number as the Phone Number on the Configure SMS tab of BYODAPP:

Configure SMS

Configure SMS

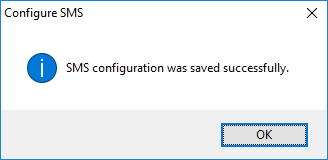

Then, click on Save. The following message will be displayed:

Configure SMS

You can manage your Twilio subscription on the Manage Twilio subscription section, at the bottom of the Configure SMS tab. Administrate your account, see the Service Status or reach Twilio Support Center just by clicking on the corresponding buttons.

Configure EMAIL

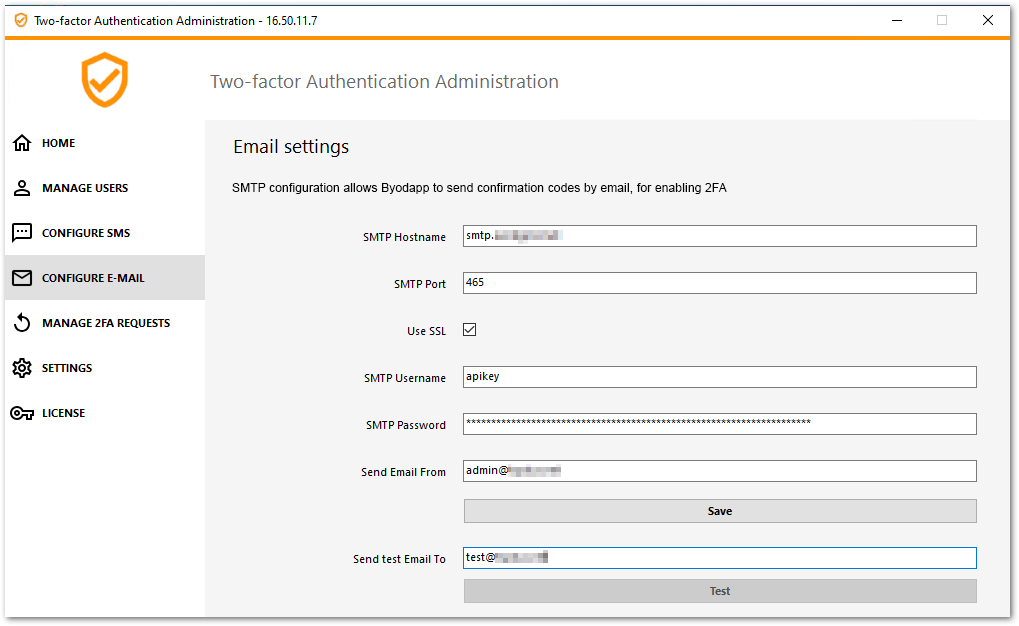

For the user to receive verification codes by EMAIL, you must first configure your SMTP email.

Configure EMAIL

Login using Two-factor Authentication

Once a user has configured his BYODAPP account in his authenticator app, he or she will be able to connect using its password and the code provided by its authenticator app, by SMS or Email.

From the BYODAPP Remote Access Web portal:

Login Using Two-factor Authentication From Web Portal

From the BYODAPP generated client:

Login Using Two-factor Authentication From Generated Client

Time Synchronization

BYODAPP application servers and client devices must share the same time. This means that the time and date of the server must be synchronized with a time server. Client devices must also have time synchronization, regardless of the time zone on which they are configured.

If an authentication request comes from a Device whose date and time are not synchronized, or if the server's date and time are not synchronized, this request may be rejected.

The validation of information between the Device and the server relates to UTC time.
In the Settings section, the Discrepency parameter is used to manage the period of validity of the code, in intervals of 30 seconds.

Example of validation or valid authentication:

  • the server is synchronized with a time server, the time zone is UTC + 2, it is 2:30 pm
  • the Device is synchronized with a time server, the time zone is UTC + 1, it is 1:30 pm
  • the Discrepency parameter is configured at 60, i.e. a code validity period of 30 minutes
  • referred to UTC time, the Device time and the server time are identical.

Example of validation or invalid authentication:

  • the server is synchronized with a time server, the time zone is UTC + 2, it is 2:30 pm
  • the Device is not synchronized with a time server, the time zone is UTC-1, the time is manually set to 1:30 pm
  • the Discrepency parameter is configured at 60, i.e. a code validity period of 30 minutes
  • the server time referred to UTC time is 12:30 am
  • the time communicated by the Device, referred to UTC time is 2:30 pm
  • the difference is 120 minutes, the validation code is therefore refused.

Settings

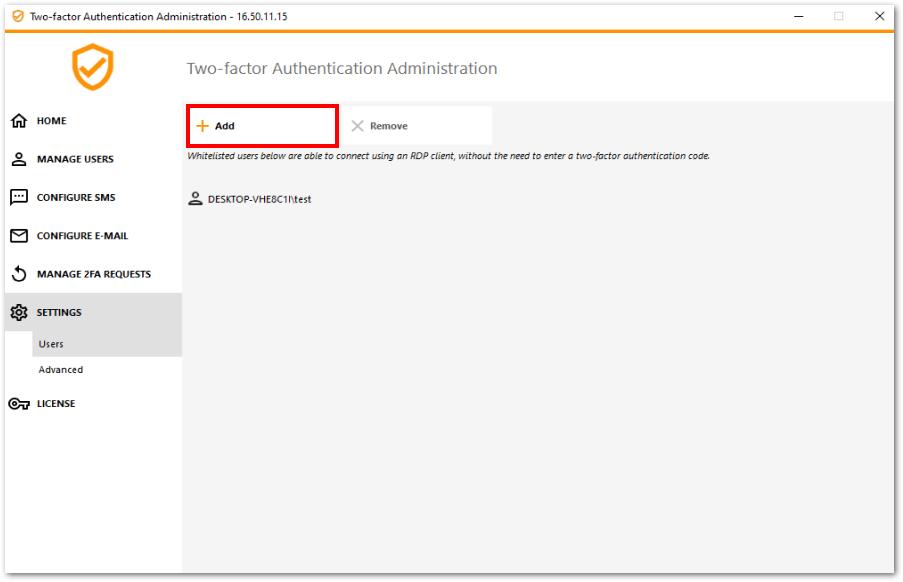

The Settings tab allows you to whitelist users, in order for them to connect using an RDP client, without the need to enter a two-authentication code.

Click on the "Add" button to add a user and remove a user by selecting it and clicking on the "Remove" button.

Two-factor Authentication-Settings

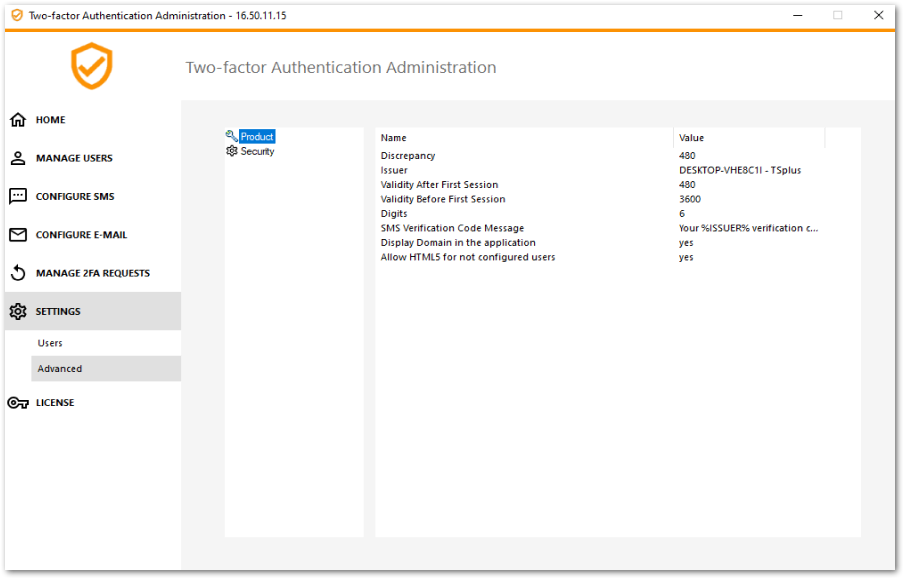

The Advanced tab allows you to configure Two-Factor Authentication in-depth settings.

Two-factor Authentication-Advanced-Settings

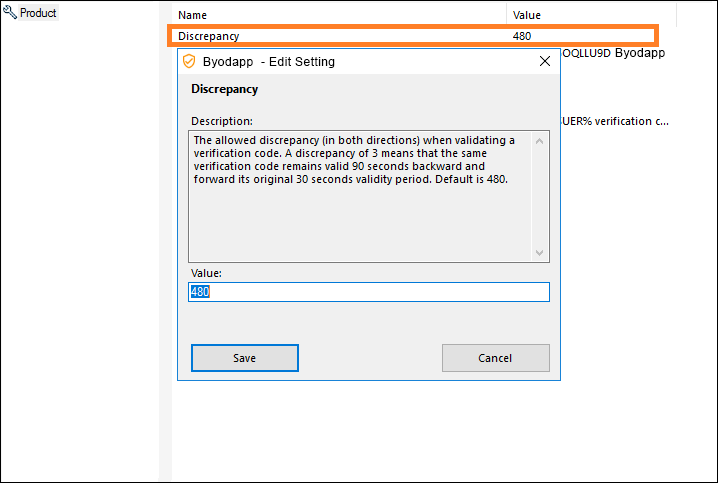

Discrepancy

You can modify the Discrepancy value, which allows you to set the validation time of a verification code.
A discrepancy of 3 means that the same verification code remains valid 90 seconds backward and forward its original 30 seconds validity period. Default is 480, which means 480 x 30 seconds= 4 hours.

Two-factor Authentication-Advanced-Settings

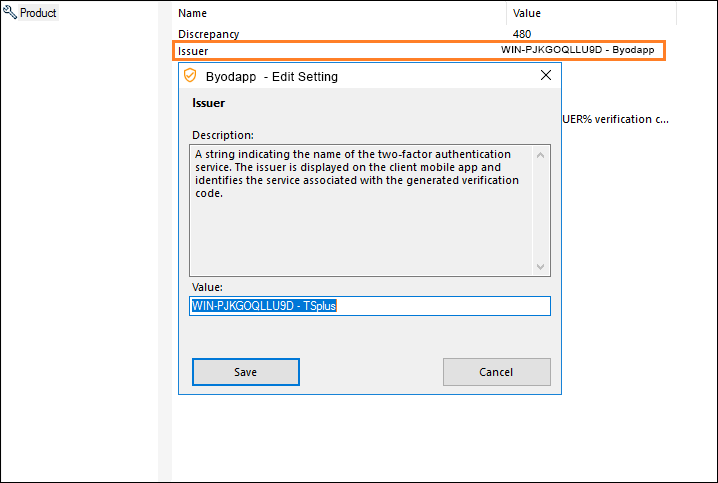

Issuer

A string indicating the name of the two-factor authentication service. The issuer is displayed on the client mobile app and identifies the service associated with the generated verification code. By default, it is composed of the server's name with BYODAPP.

Two-factor Authentication-Advanced-Settings

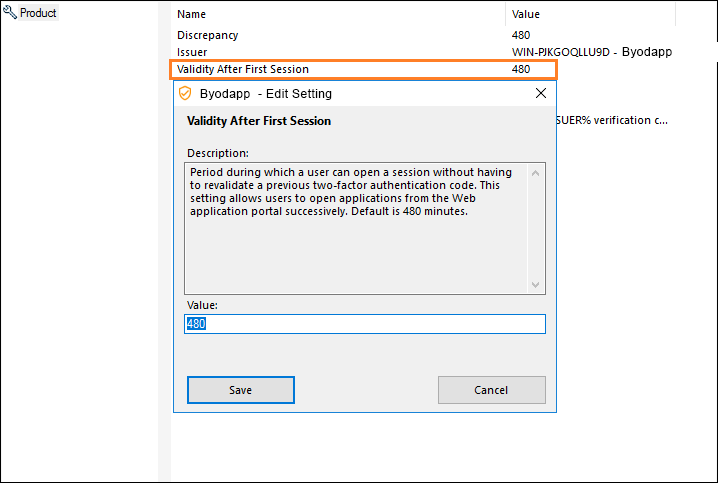

Validity After First Session

Period during which a user can open a session without having to revalidate a previous two-factor authentication code. This setting allows users to open applications from the Web application portal successively. Default is 480 minutes.

Two-factor Authentication-Advanced-Settings

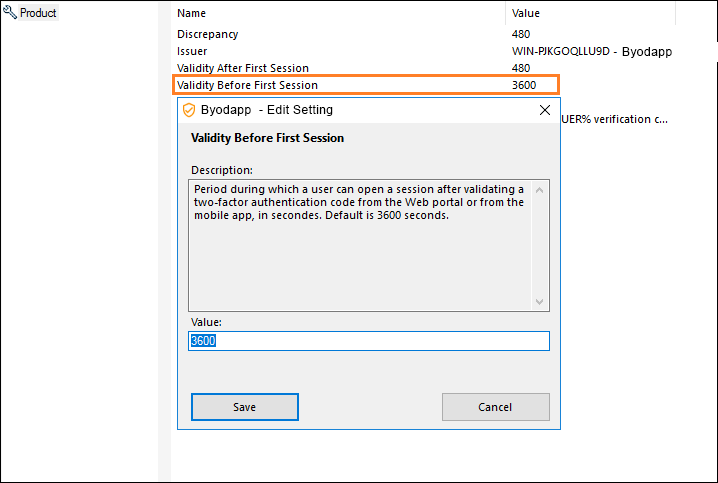

Validity Before First Session

Period during which a user can open a session after validating a two-factor authentication code from the Web portal or from the mobile app, in secondes. Default is 3600 seconds.

Two-factor Authentication-Advanced-Settings

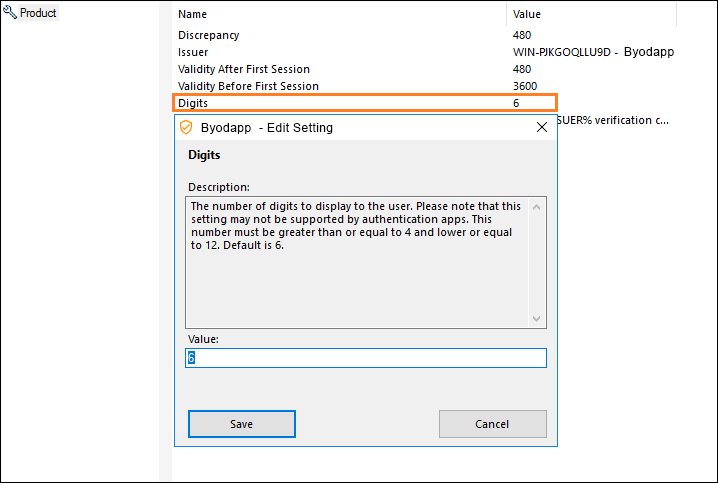

Digits

The number of digits to display to the user. Please note that this setting may not be supported by authentication apps. This number must be greater than or equal to 4 and lower or equal to 12. Default is 6.

Two-factor Authentication-Advanced-Settings

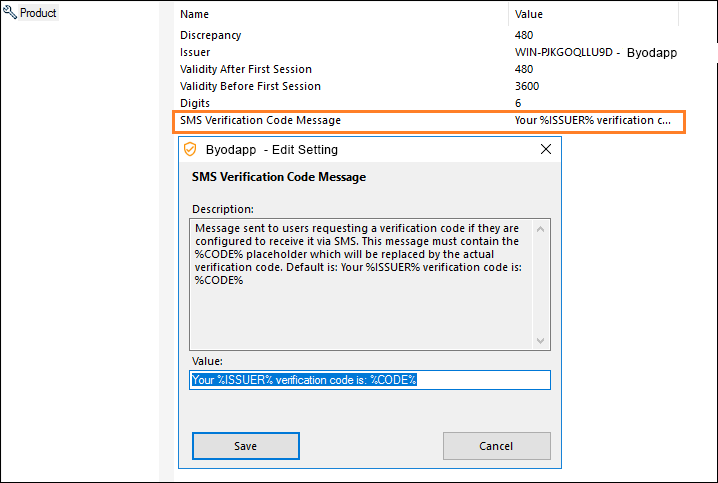

SMS Verification Code Message

Message sent to users requesting a verification code if they are configured to receive it via SMS. This message must contain the %CODE% placeholder which will be replaced by the actual verification code. Default is: Your %ISSUER% verification code is: %CODE%

Two-factor Authentication-Advanced-Settings
