Advanced - Firewall Settings

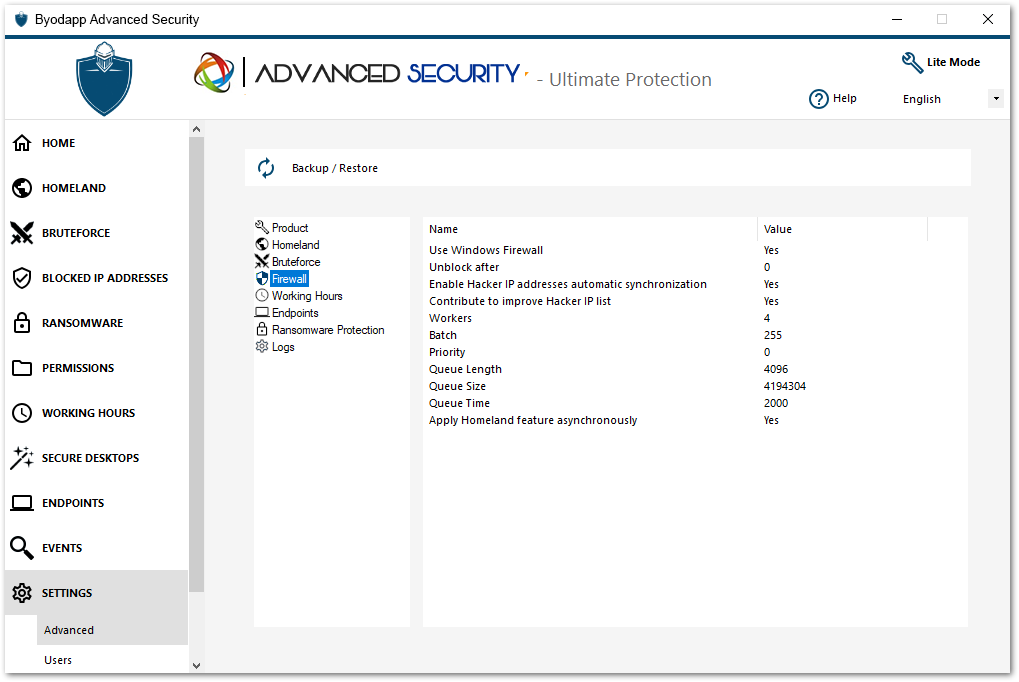

The Firewall tab allows you to activate the Windows Firewall or deactivate it in favor of the BYODAPP Advanced Security built-in firewall.

Since version 4.4, a built-in firewall is included in BYODAPP Advanced Security.

As a general guidance, if Windows Firewall is activated on your server, then you should use it to enforce BYODAPP Advanced Security rules (default). If you installed another firewall, then you must activate BYODAPP Advanced Security built-in firewall.

Firewall Settings 1

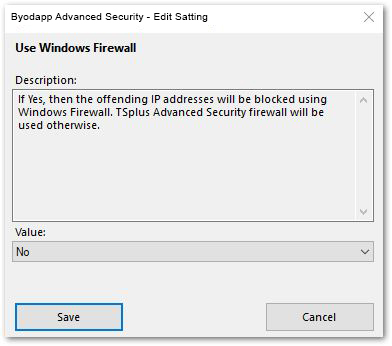

Use Windows Firewall
In order to activate the built-in firewall, go to Settings > Advanced > Product > Use Windows Firewall and set the value to: No
If Yes, then the offending IP addresses will be blocked using Windows Firewall.
BYODAPP Advanced Security firewall will be used otherwise.

Firewall Settings 2

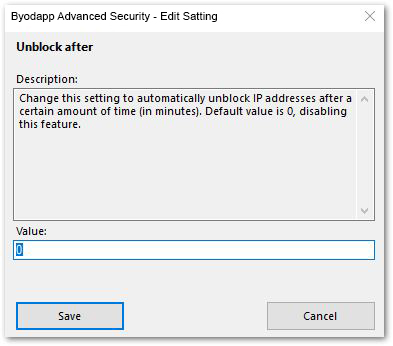

Unblock after
Change this setting to automatically unblock IP addresses after a certain amount of time (in minutes). Default value is 0, disabling this feature.
Value: 0

Firewall Settings 3

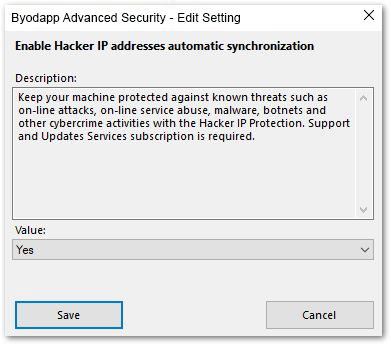

Enable Hacker IP addresses automatic synchronization
Keep your machine protected against known threats such as on-line attacks, on-line service abuse, malware, botnets and other electronic activities with the Hacker IP Protection. Support and Updates Services subscription is required.
Value: Yes

Firewall Settings 4

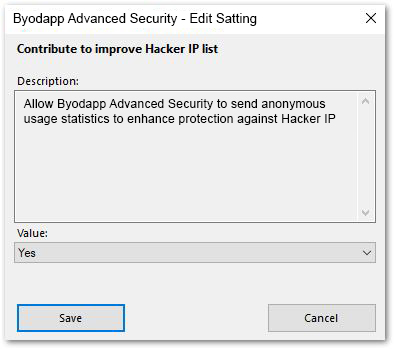

Contribute to improve Hacker IP list
Allow BYODAPP Advanced Security to send anonymous usage statistics to enhance protection against Hacker IP.
Value: Yes

Firewall Settings 5

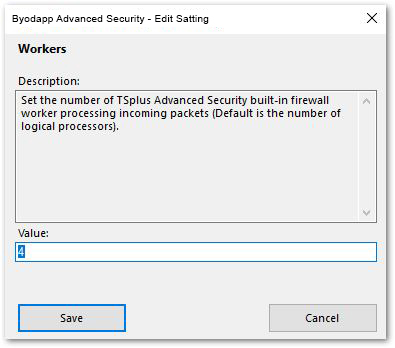

Workers
Set the number of BYODAPP Advanced Security built-in firewall worker processing incoming packets (Default is the number of logical processors).
Value: 4

Firewall Settings 6

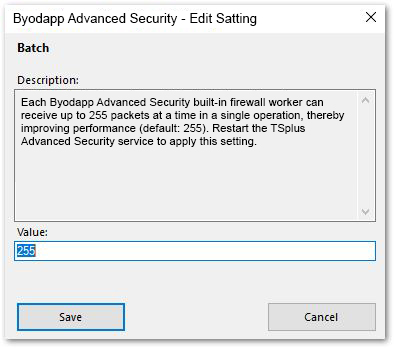

Batch
Each BYODAPP Advanced Security built-in firewall worker can receive up to 255 packets at once using a single operation, improving performance (Default: 255).
Restart BYODAPP Advanced security service to apply this setting.
Value: 255

Firewall Settings 7

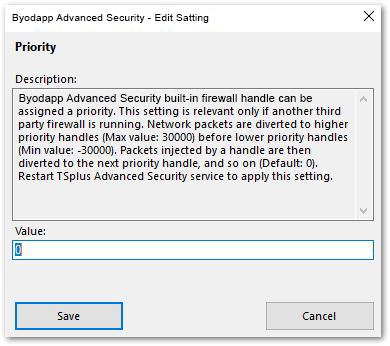

Priority
BYODAPP Advanced Security built-in firewall handle can be assigned a priority. This setting is relevant only if another third party firewall is running.
Network packets are diverted to higher priority handles (Max value: 30000) before lower priority handles (Min value: -30000). * Packets injected by a handle are then diverted to the next priority handle, and so on (Default: 0).
Restart BYODAPP Advanced Security service to apply this setting.
Value: 0

Firewall Settings 8

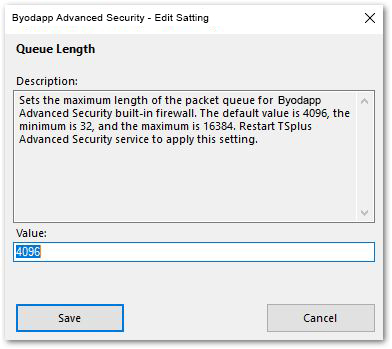

Queue Length
Sets the maximum length of the packet queue for BYODAPP Advanced security built-in firewall.
The default value is 4096, the minimum is 32, and the maximum is 16384.
Restart BYODAPP Advanced Security service to apply this setting.
Value: 4096

Firewall Settings 9

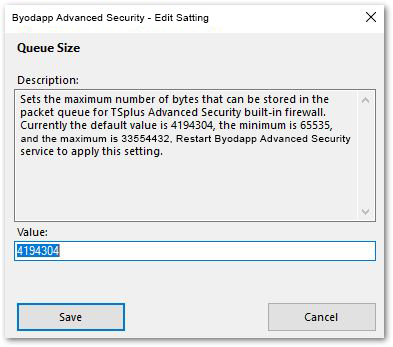

Queue Size
Sets the maximum number of bytes that can be stored in the packet queue for BYODAPP Advanced Security built-in firewall.
Currently the default value is 4194304, the minimum is 65535, and the maximum is 33554432.
Restart BYODAPP Advanced Security service to apply this setting.
Value: 4194304

Firewall Settings 9

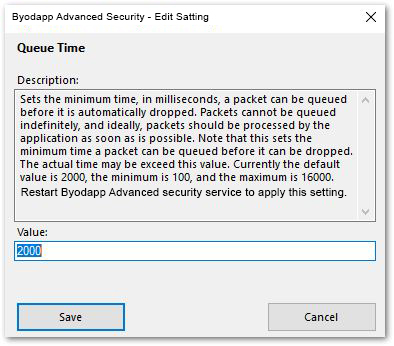

Queue Time
Sets the minimum time, in milliseconds, a packet can be queued before it is automatically dropped.
Packets cannot be queued indefinitely, and ideally, packets should be processed by the application as soon as is possible.
Note that this sets the minimum time a packet can be queued before it can be dropped.
The actual time may exceed this value.
Currently the default value is 2000, the minimum is 100, and the maximum is 16000.
Restart BYODAPP Advanced Security service to apply this setting.
Value: 2000

Firewall Settings 10

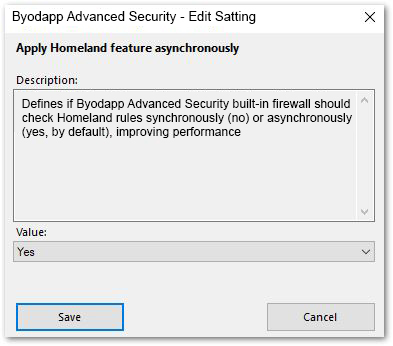

Apply Homeland feature asynchronously
Defines if BYODAPP Advanced Security built-in firewall should check Homeland rules synchronously (no) or asynchronously (yes, by default), improving performance.
Value: Yes
